이 글은 flask로 chart.js를 적용해서 만드는데 html부분에 변수 적용이 어려웠던 저의 경험을 나누고자 작성되었습니다.
아래는 https://www.chartjs.org/docs/latest/ 에서 제공하고 있는 예시인데요,
<canvas id="myChart" width="400" height="400"></canvas>
<script>
var ctx = document.getElementById('myChart').getContext('2d');
var myChart = new Chart(ctx, {
type: 'bar',
data: {
labels: ['Red', 'Blue', 'Yellow', 'Green', 'Purple', 'Orange'],
datasets: [{
label: '# of Votes',
data: [12, 19, 3, 5, 2, 3],
backgroundColor: [
'rgba(255, 99, 132, 0.2)',
'rgba(54, 162, 235, 0.2)',
'rgba(255, 206, 86, 0.2)',
'rgba(75, 192, 192, 0.2)',
'rgba(153, 102, 255, 0.2)',
'rgba(255, 159, 64, 0.2)'
],
borderColor: [
'rgba(255, 99, 132, 1)',
'rgba(54, 162, 235, 1)',
'rgba(255, 206, 86, 1)',
'rgba(75, 192, 192, 1)',
'rgba(153, 102, 255, 1)',
'rgba(255, 159, 64, 1)'
],
borderWidth: 1
}]
},
options: {
scales: {
y: {
beginAtZero: true
}
}
}
});
</script>

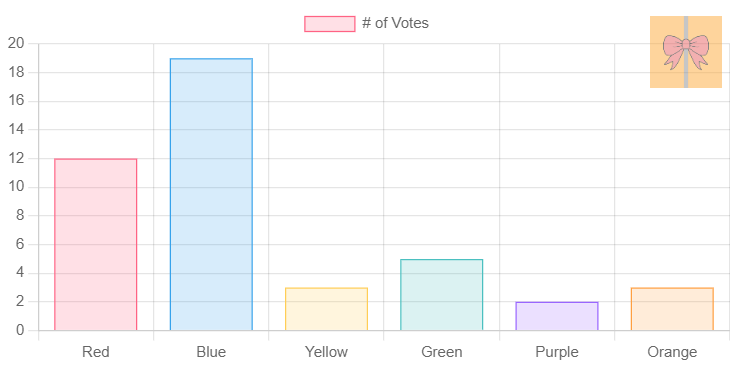

이 코드의 결과물은 아래와 같고요,
웹에 chart.js를 띄울 때 보통 labels: ['Red', 'Blue', 'Yellow', 'Green', 'Purple', 'Orange'], 이 부분(x축 라벨)과, datasets의 data: [12, 19, 3, 5, 2, 3] 이 부분(y 데이터)을 바꾸고 싶어 하실 거예요. 예시와 같이 고정 데이터면 상관없겠지만 때에 따라 바뀌어야 하는 데이터라면 flask로 생성한 변수를 그때그때 넣어줘야 하니까 json데이터로 넣어줘야 합니다.
def predictCoin():
symbol = request.args.get('symbol')
if symbol:
symbol = symbol.upper()
else:
return redirect("/")
ticker = f"KRW-{symbol}"
preds_inversed = predict(ticker)
y_preds = preds_inversed
days = list(range(1, 31))
return render_template('prediction.html', symbol=symbol, days=days, y_preds=y_preds)
일단 제가 만든 코드에서는 days가 x축 라벨이고 y_preds가 y 데이터에 속하는데요, 이것을 아래와 같이 prediction.html에서 labels: {{ days | to json }}, data: {{ y_preds | to json }}라고 적용시켜줍니다. 그냥 html에서 하는 것처럼 {{ days }}, {{ y_preds }}라고 하면 적용이 되지 않습니다.
<script>
var ctx = document.getElementById("Chart").getContext("2d");
var Chart = new Chart(ctx, {
type: "line",
data: {
labels: {{ days | tojson }},
datasets: [
{
label: "Expected {{symbol}} Price",
data: {{ y_preds | tojson }},
borderColor: "rgba(247, 16, 74, 1)",
borderWidth: 1,
},
],
},
options: {
scales: {
y: {
beginAtZero: false,
},
},
},
});
</script>
그런데 저는 여기서 다음과 같은 에러가 뜹니다
Object of type ndarray is not JSON serializable flask
왜냐하면 y_preds가 ndarray였기 때문입니다. list 타입이어야 하나 봅니다. 그래서 다음 링크를 참고하여 https://stackoverflow.com/questions/51685322/object-of-type-ndarray-is-not-json-serializable
아래에서 세 번째 줄의 y_preds = preds_inversed 부분에 .to_list()를 추가하여 ndarray에서 리스트로 만들어주었습니다. (day는 이미 리스트 형식이므로 손 볼 필요가 없었습니다)
def predictCoin():
symbol = request.args.get('symbol')
if symbol:
symbol = symbol.upper()
else:
return redirect("/")
ticker = f"KRW-{symbol}"
preds_inversed = predict(ticker)
y_preds = preds_inversed.tolist()
days = list(range(1, 31))
return render_template('prediction.html', symbol=symbol, days=days, y_preds=y_preds)

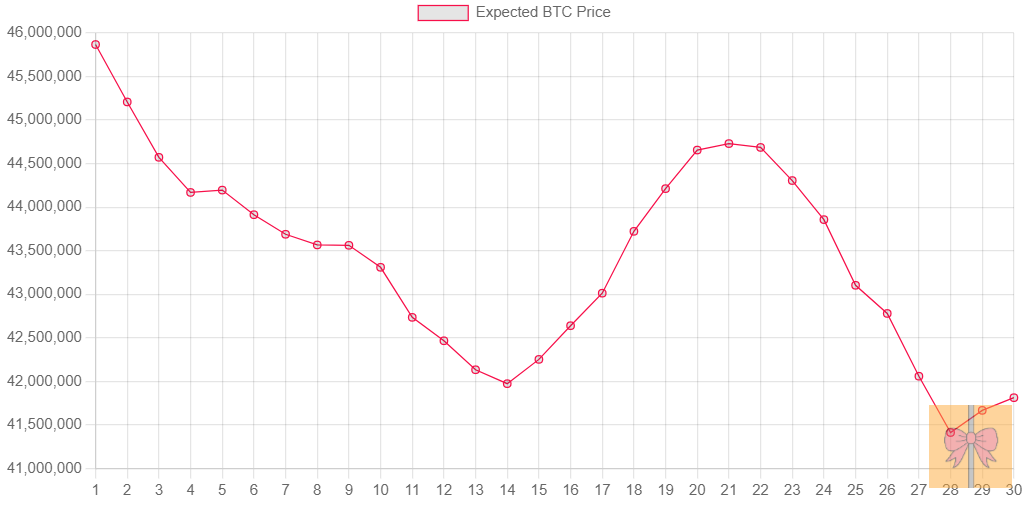

이후 저는 모든 문제를 해결하고 다음과 같이 웹에 chart.js를 띄울 수 있었습니다.
참고할만한 사이트 : https://apt-info.github.io/%EA%B0%9C%EB%B0%9C/python-flask4-chart/
